Medium lifting storage electric pallet stacker 1500kg walking type AC control

Quick Details:

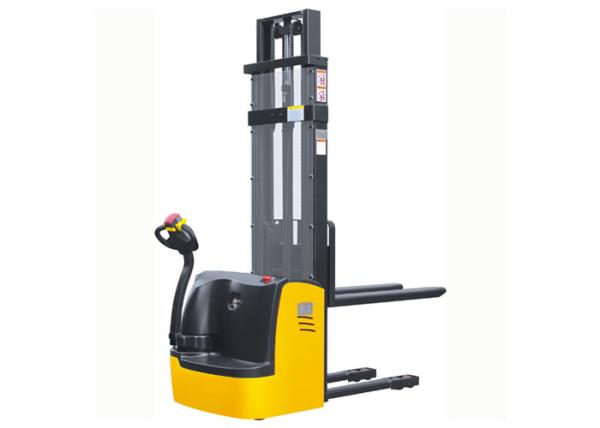

Description: Electric Walkie Stacker CDDR15
Capacity: 1500kg
Max. lifting height: 2500/3000/3300/3500/4500/5000/5600mm
Fork dimensions: 60/180/1070(1150)mm

Aisle width for pallets: 2420mm
Lifting speed, laden/unladen: 0.11/0.15m/s

Lowering speed, laden/unladen: 0.12/0.12m/s

Battery: 24V240AH

Advantages:​​​​

• Advanced AC control system.
• ​Intelligentized regenerative brake system.
• ​Multi-function display with BDI and hour meter etc.
• Emergency reversing device.
• ​Auto deceleration system utilizes regenerative braking.
• ​Built-in pressure relief valve protects the trucks from overloads.
• ​Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• ​Electric pallet stacker drive motor has a small turning radius. The motor structure is water-proof and dust-proof.
• ​CANbus technology reduces wiring complexity and increase reliability.
• ​Advanced AC control system with brushless motor.
• ​Auto deceleration system utilises regenerative braking.
• ​Side-way battery with roll-out system is very convenient for replacement.

WE ARE WHAT WE DO​

Highly professional and experienced in manufacture and sell warehouse forklift trucks, pallet trucks, pallet stackers, tow tractors, lift tables, forklift spare parts, etc.

We have rich business experience, strong research and development team, reasonable product price are the embodiment of our strength.

13 years has been adhering to the customer demand as the core, quality, integrity-based business philosophy, adhere to the pre-sale, sale, customer service three service tenet, provide customers with high-quality, safe and efficient whole logistics handling equipment.

For warehouse solution, we can offer one stop service. We have long been committed to:

Make the storage and transportation of goods become safe and simple.

For longer service life, higher work efficency, less maintenance time.

We have passed ISO9001:2008 quality system authentication, most of our products get CE, GS certification.
