    AGV Intelligent Driverless Warehouse Forklift Trucks Laser Guided 1.5 Ton 2 Ton Pallet Truck

    Ask Lasest Price
    Brand Name : REACH
    Model Number : AGV
    Certification : ISO, CE, TUV
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units per year
    Delivery Time : 60 to 90 days
    • Product Details
    • Company Profile

    AGV Intelligent Driverless Warehouse Forklift Trucks Laser Guided 1.5 Ton 2 Ton Pallet Truck

    AGV Intelligent driverless warehouse forklift trucks Laser guided 1.5ton 2ton pallet truck stacker


    Forklift AGV standard full-automatic stacker with automatic navigation function can realize unmanned forklift operation and reduce labor cost.

    • Walking function: optional magnetic navigation, laser navigation, visual navigation, cellular navigation, etc. Realize walking in all directions.
    • Operation function: realize unmanned operation.

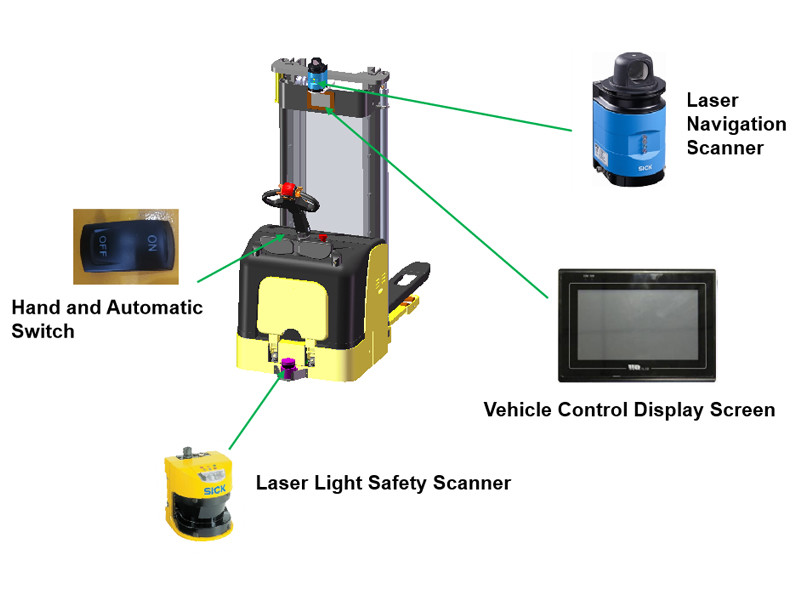

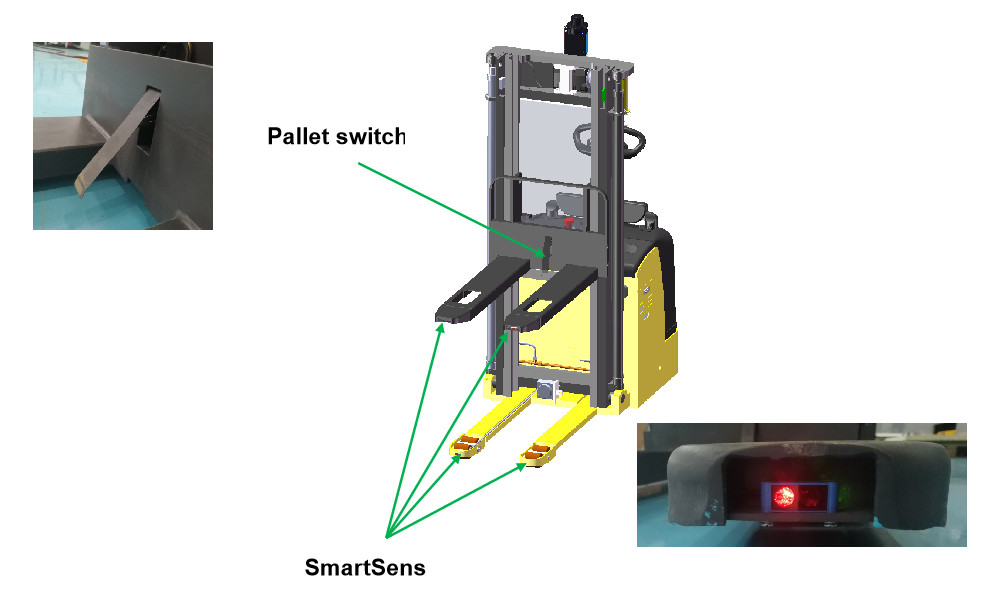

    • The system has high reliability, adopts imported brushless motor, AGV special safety sensor, safety touch, double safety protection.

    Load capacitykg1500/2000
    Load center distancemm600
    Load distance, centre of drive axle to forkmm672
    Fork height, loweredmm85
    Tyre size, frontmm250*70
    Tyre size, rearmm80*84
    Additional wheels (dimensions)mm150*60
    Height, mast loweredmm1735/1985/2135/2235/2050/2210/2410
    Free lift (option 2500-3500mm)mm1300/1550/1700/1800/1570/1740/1940
    Max. lifting heightmm2500/3000/3300/3500/4500/5000/5600
    Height, mast extendedmm2955/3455/3755/3955/5030/5510/6110
    Initial liftmm1150/1450
    Overall lengthmm2020/2100
    Length to face of forksmm950
    Overall widthmm850
    Fork dimensionsmm60/180/1070(1150)
    Width overall forksmm570/695
    Aisle width for pallets 800*1200 lengthwaysmm2515
    Turning radiusmm1655
    Travel speed, laden/unladenkm/h6.5/6.7
    Lift speed, laden/unladenm/s0.11/0.14
    Lowering speed, laden/unladenm/s0.12/0.12
    BatteryV/Ah24/240
    Service weightkg1180/1205/1220/1230/1280/1300/1320

    Investment return and efficiency analysis

    CategoryAGV FORKLIFTNORMAL FORKLIFT AND OPERATOR
    Recruitment feeno costabout $50-150 per person
    Wage cost

    1. AGV forklift service life can be
    more than 10 years;
    2. Maintain once every 6 months,
    the monthly cost is about $75.

    At least $740 per person
    Administration costno cost

    In addition to the daily management cost,
    there will also be the comprehensive
    management cost of quality loss caused by
    worker's slowness, mood, health and other influences.

    Stability of workerthere will be no loss of personnel

    In society, it is more and more difficult to recruit
    workers willing to operate forklifts, and the loss
    rate of skilled workers is very high.

    Accident rate

    according to operation manual for maintenance, high safety and reliability.

    There is a risk of manual misoperation, resulting in work inquiry or damage to shelves and goods.


    AGV Intelligent Driverless Warehouse Forklift Trucks Laser Guided 1.5 Ton 2 Ton Pallet TruckAGV Intelligent Driverless Warehouse Forklift Trucks Laser Guided 1.5 Ton 2 Ton Pallet Truck
